Monday, 7 March 2022

***** ๐…๐Ÿ“ ๐๐ˆ๐†-๐ˆ๐ ๐€๐…๐Œ ๐Œ๐จ๐๐ฎ๐ฅ๐ž - ๐ƒ๐ž๐ฉ๐ฅ๐จ๐ฒ๐ฆ๐ž๐ง๐ญ ๐Œ๐จ๐๐ž๐ฌ *****

 The F5 ๐€๐…๐Œ (๐€๐๐ฏ๐š๐ง๐œ๐ž๐ ๐…๐ข๐ซ๐ž๐ฐ๐š๐ฅ๐ฅ ๐Œ๐š๐ง๐š๐ ๐ž๐ซ) Module provides different key features including: "๐๐ž๐ญ๐ฐ๐จ๐ซ๐ค ๐…๐ข๐ซ๐ž๐ฐ๐š๐ฅ๐ฅ ๐๐จ๐ฅ๐ข๐œ๐ฒ", "๐๐€๐“ - ๐๐จ๐ฅ๐ข๐œ๐ฒ", "๐ˆ๐๐’ - ๐๐จ๐ฅ๐ข๐œ๐ฒ (๐๐ˆ๐)", "๐‹๐Ÿ-๐Ÿ• ๐ƒ๐ƒ๐จ๐’ ๐๐ซ๐จ๐ญ๐ž๐œ๐ญ๐ข๐จ๐ง ๐๐ซ๐จ๐Ÿ๐ข๐ฅ๐ž", "๐๐’๐ (๐๐ซ๐จ๐ญ๐จ๐œ๐จ๐ฅ ๐’๐ž๐œ๐ฎ๐ซ๐ข๐ญ๐ฒ ๐๐ซ๐จ๐Ÿ๐ข๐ฅ๐ž)", "๐ˆ๐๐ˆ (๐ˆ๐ ๐ˆ๐ง๐ญ๐ž๐ฅ๐ฅ๐ข๐ ๐ž๐ง๐œ๐ž) ๐๐จ๐ฅ๐ข๐œ๐ฒ", and "๐’๐ž๐ซ๐ฏ๐ข๐œ๐ž ๐๐จ๐ฅ๐ข๐œ๐ฒ".


By focusing on "๐๐ž๐ญ๐ฐ๐จ๐ซ๐ค ๐…๐ข๐ซ๐ž๐ฐ๐š๐ฅ๐ฅ" Engine, there are two Deployment Scenarios:

๐Ÿ- ๐€๐ƒ๐‚ - ๐Œ๐จ๐๐ž (๐ƒ๐„๐…๐€๐”๐‹๐“):

* It is based on "๐๐ž๐ ๐š๐ญ๐ข๐ฏ๐ž ๐’๐ž๐œ๐ฎ๐ซ๐ข๐ญ๐ฒ ๐Œ๐จ๐๐ž๐ฅ"
* All Traffic destined for a “๐’๐ž๐ฅ๐Ÿ-๐ˆ๐“ or “๐•๐ข๐ซ๐ญ๐ฎ๐š๐ฅ ๐’๐ž๐ซ๐ฏ๐ž๐ซ“ is “Allowed”, unless an ACL specifically Denies it

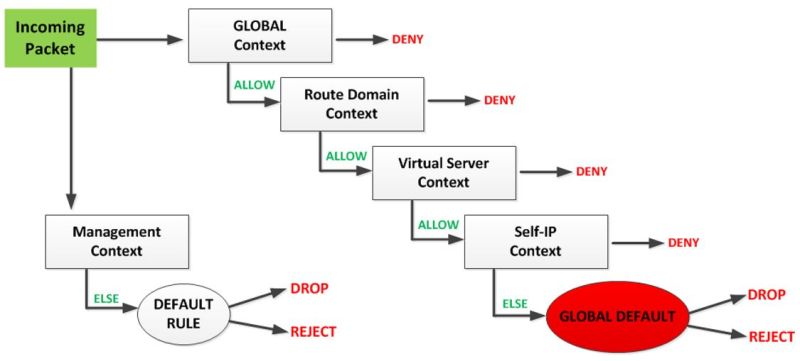

* It applies ONLY to the “๐•๐ข๐ซ๐ญ๐ฎ๐š๐ฅ ๐’๐ž๐ซ๐ฏ๐ž๐ซ“ and “๐’๐ž๐ฅ๐Ÿ-๐ˆ๐“ Contexts on the system
* It is also called "๐ƒ๐ž๐Ÿ๐š๐ฎ๐ฅ๐ญ-๐ƒ๐ž๐ง๐ฒ ๐Œ๐จ๐๐ž"
* In this mode, the “SOURCE” and “DESTINATION” settings of each Virtual Server (and Self-IP) imply corresponding Firewall Rules

๐Ÿ- ๐…๐ข๐ซ๐ž๐ฐ๐š๐ฅ๐ฅ - ๐Œ๐จ๐๐ž:

* It is based on "๐๐จ๐ฌ๐ข๐ญ๐ข๐ฏ๐ž ๐’๐ž๐œ๐ฎ๐ซ๐ข๐ญ๐ฒ ๐Œ๐จ๐๐ž๐ฅ (๐™๐„๐‘๐Ž-๐“๐‘๐”๐’๐“)"
* You can configure the system to Drop or Reject all traffic ๐๐Ž๐“ explicitly allowed
* It applies a "๐ƒ๐ž๐Ÿ๐š๐ฎ๐ฅ๐ญ-๐ƒ๐ž๐ง๐ฒ" Policy ONLY to all “๐’๐ž๐ฅ๐Ÿ-๐ˆ๐๐ฌ“ and “๐•๐ข๐ซ๐ญ๐ฎ๐š๐ฅ ๐’๐ž๐ซ๐ฏ๐ž๐ซ๐ฌ”
* All traffic is "๐๐‹๐Ž๐‚๐Š๐„๐ƒ" through the AFM Module, and any traffic you want to "๐€๐‹๐‹๐Ž๐–" through, must be Explicitly configured in the Security Rules
